| الاسم التجاري: | HUATEC |
| رقم الموديل: | HCDX-3000SJ تيار متردد |
| موك: | 1 قطعة |
| تفاصيل التغليف: | حزمة التصدير القياسية |
| شروط الدفع: | T/T ، Paypal ، Western Union |

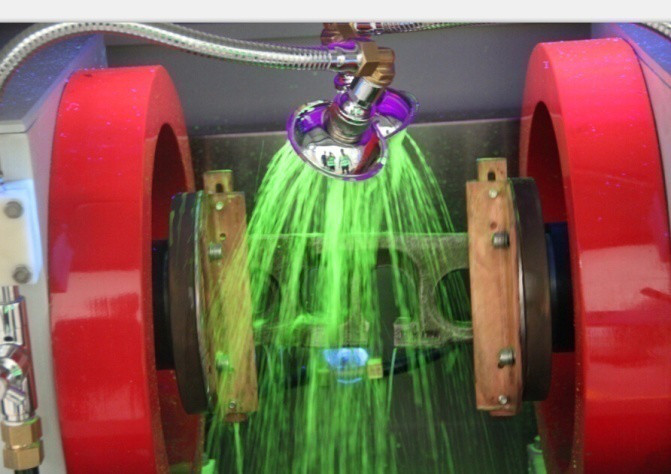

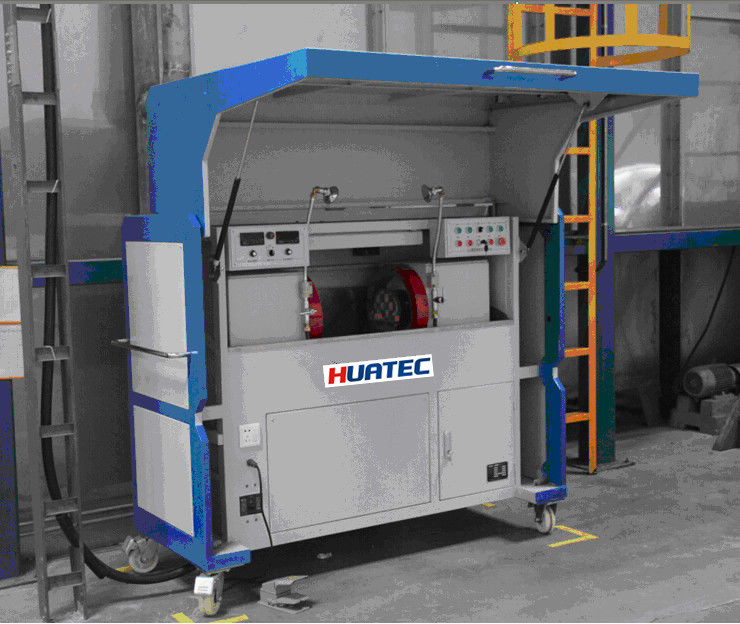

HCDX-3000SJ AC fluorescence magnetic test booth
Technical features
Magnetizing current:
Circumferential magnetizing current (AC): 0－3000A(virtual value)adjustable continuously, phase controlled circuit Breaker
Vertical magnetizing current(AC): 0－16000AT(virtual value)adjustable continuously, phase controlled circuit Breaker
Magnezing method: Circumferential, Vertical,resultant magnetization

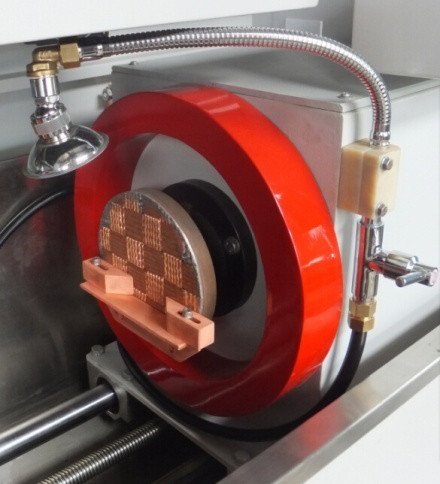

Coil inner diamter Φ500mm(one piece)

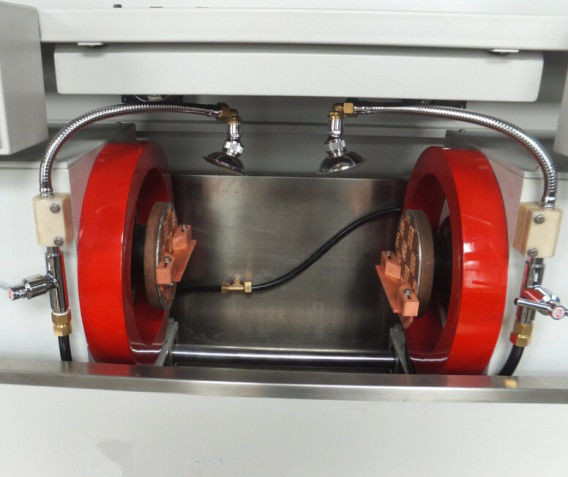

Electrode Pole distance 0－1000mm adjustable
Clamp travel route 40 mm(single phase)
Electrode Pole rotating speed: 10turns/minute
Clamp type: Air power control or electric control
Demagnezing method AC attenuation demagnezing
Demagnezing magnetomotive: AC 16000~0AT
Remanence ≤0.2 mT
UV strength: ≥ 2000μW/cm2 (distance to UV light 380 mm)
Air power pressure: 0.4~0.8 Mpa (offered by customer)
Power: Three phase four line AC 380V 50Hz 150A
Outside size 1800(L)×800(W)×1900(H)
Total weight: about 1.0T
Duty cycle: ≥25%
Configuration
|
Model Configuration |
A | B | C |
| PLC | ● | ● | ● |
| Dial Ammeter | ● | ||
| Digital Ammeter | ● | ||
| Touch screen | ○ | ● | |
| Current preset | ○ | ● | |
| DC magnetizing | ○ | ○ | |
| Contact inspection fuction | ○ | ○ | |
| Anti spark cooper packing | ○ | ○ | ● |
| Air power /electric clamp | ● | ● | ● |
| AC magnetizing current | AC 2000A～6000A | ||
| Max.distance of electrode pole | ≤3000mm | ||
| Max.coil inner diameter | ≤700mm | ||
Note:“●” standard configuration,“○” optional
