HIgh Resolution Coating Thickness Gauge TG8830F Auto Paint Thickness Gauge

  • HIgh Resolution Coating Thickness Gauge TG8830F Auto Paint Thickness Gauge
  • HIgh Resolution Coating Thickness Gauge TG8830F Auto Paint Thickness Gauge
  • HIgh Resolution Coating Thickness Gauge TG8830F Auto Paint Thickness Gauge
  • HIgh Resolution Coating Thickness Gauge TG8830F Auto Paint Thickness Gauge
  • HIgh Resolution Coating Thickness Gauge TG8830F Auto Paint Thickness Gauge
  • HIgh Resolution Coating Thickness Gauge TG8830F Auto Paint Thickness Gauge
مكان المنشأ بكين
اسم العلامة التجارية HUATEC
إصدار الشهادات ISO, CE, GOST
رقم الموديل TG-8830F
الحد الأدنى لكمية قطعة واحدة
الأسعار around USD300
تفاصيل التغليف حزمة التصدير القياسية
وقت التسليم 1-4 أيام
شروط الدفع بـ (ت) ، (باي بال) ، (ويسترن يونيون)
القدرة على العرض 500 قطعة في الشهر

اتصل بي للحصول على عينات مجانية وكوبونات

واتس اب:0086 18588475571

(وي تشات): 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.

x
تفاصيل المنتج
إبراز

oating thickness tester,digital thickness gauge

,

digital thickness gauge
اترك رسالة
منتوج وصف

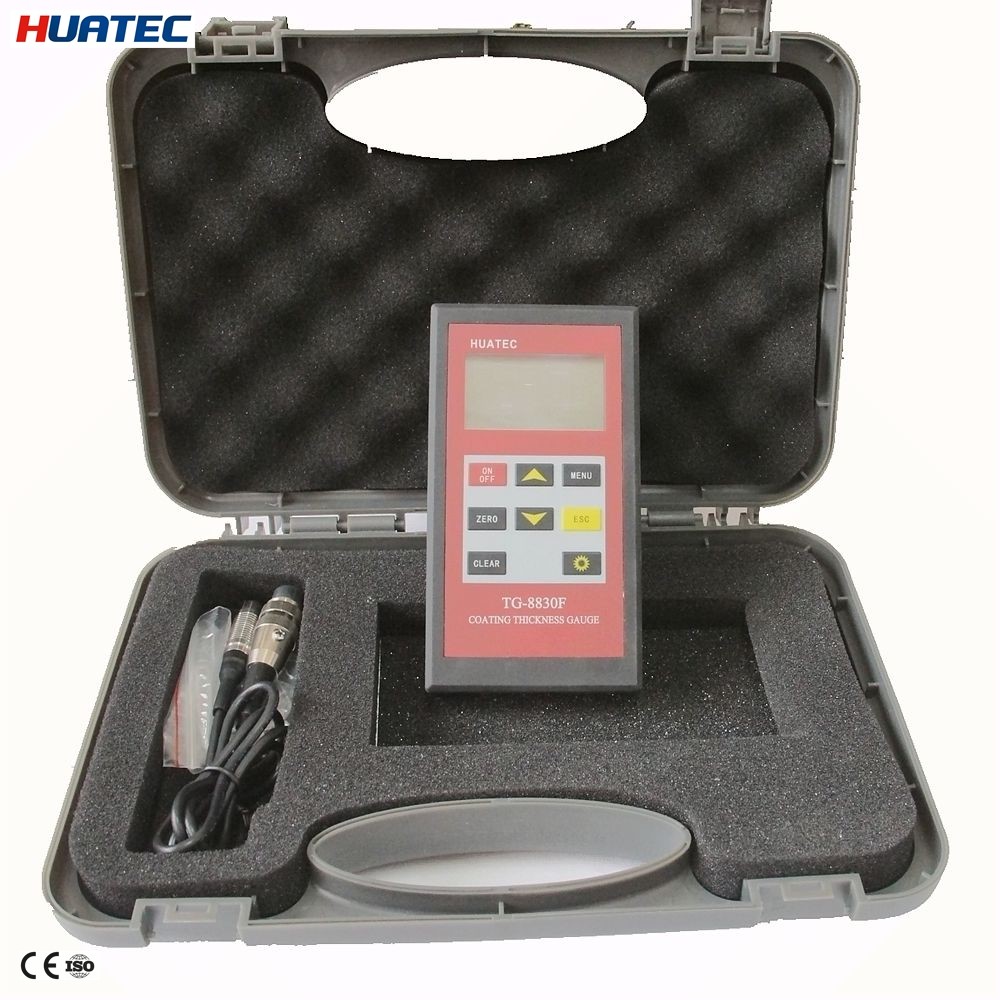

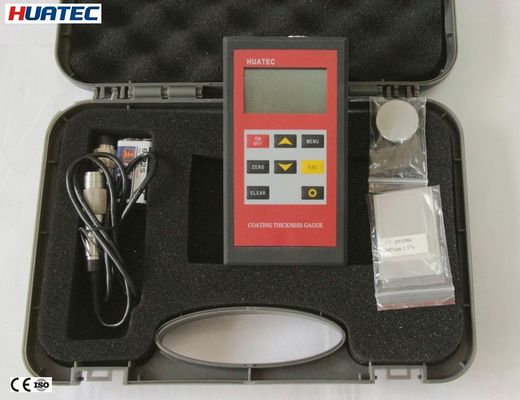

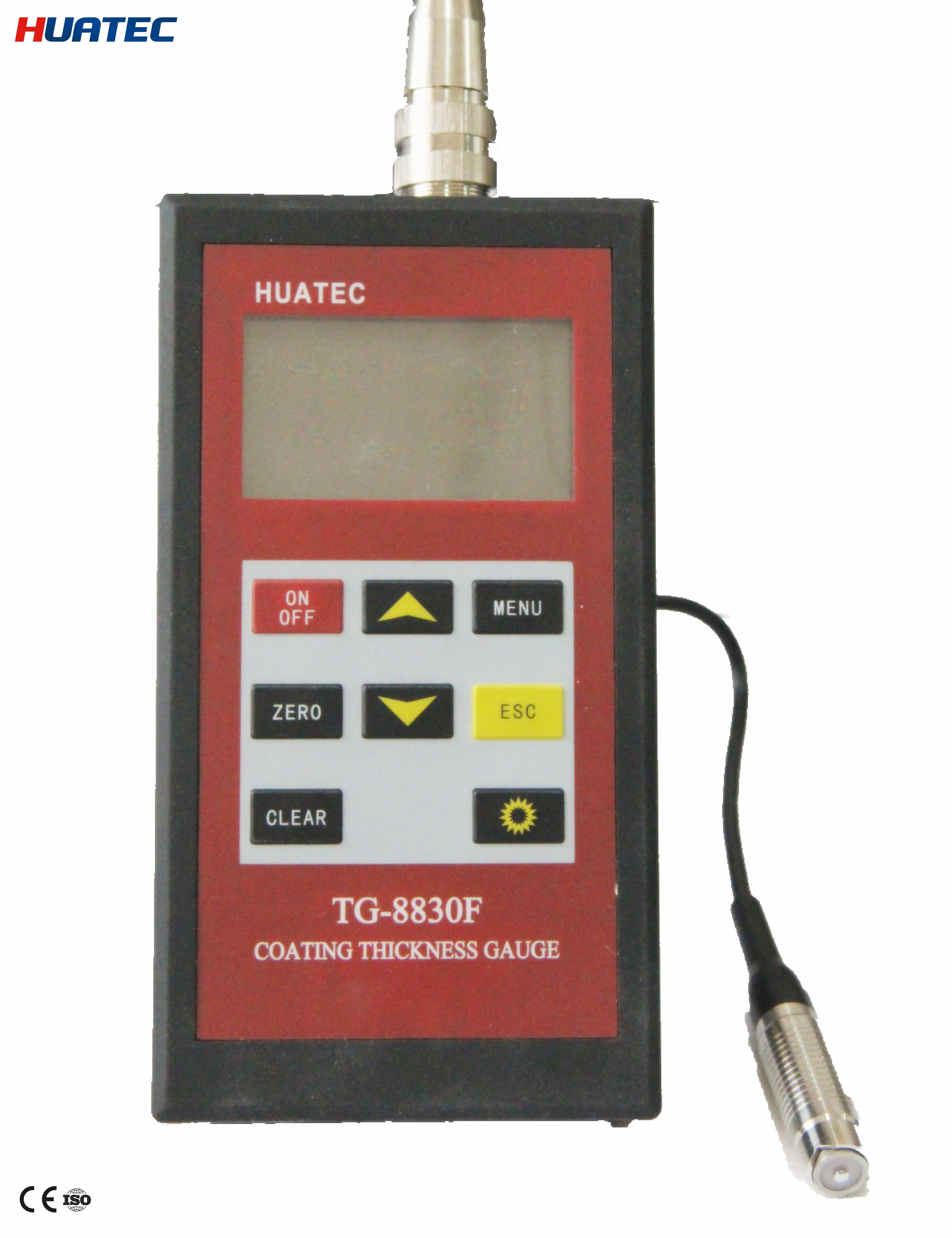

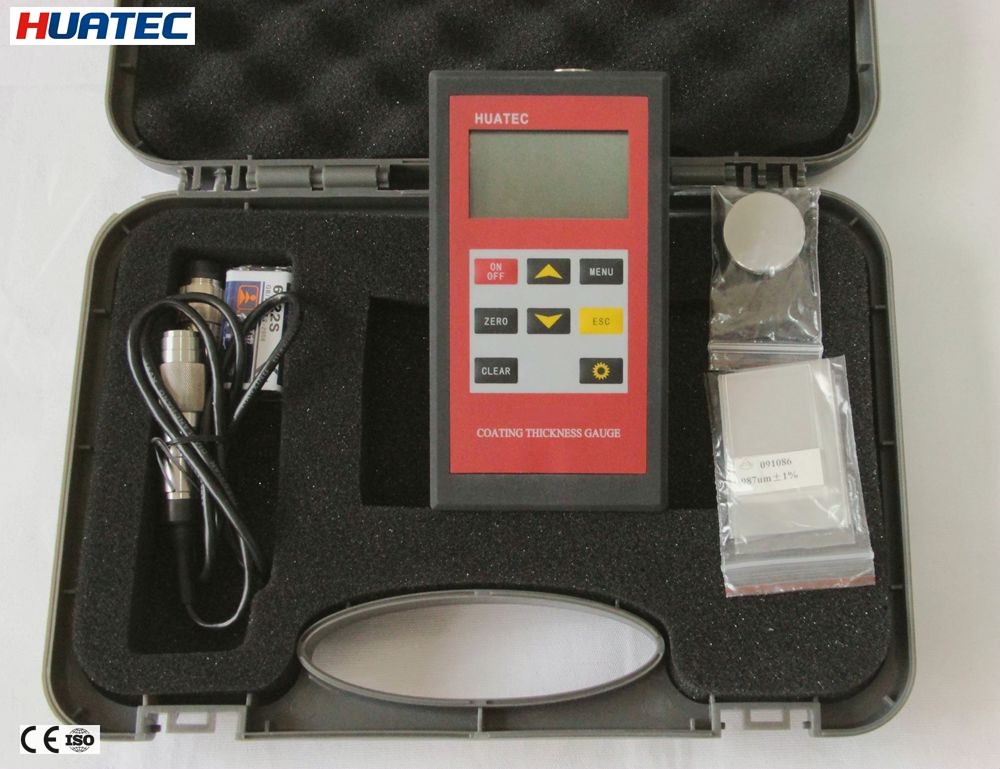

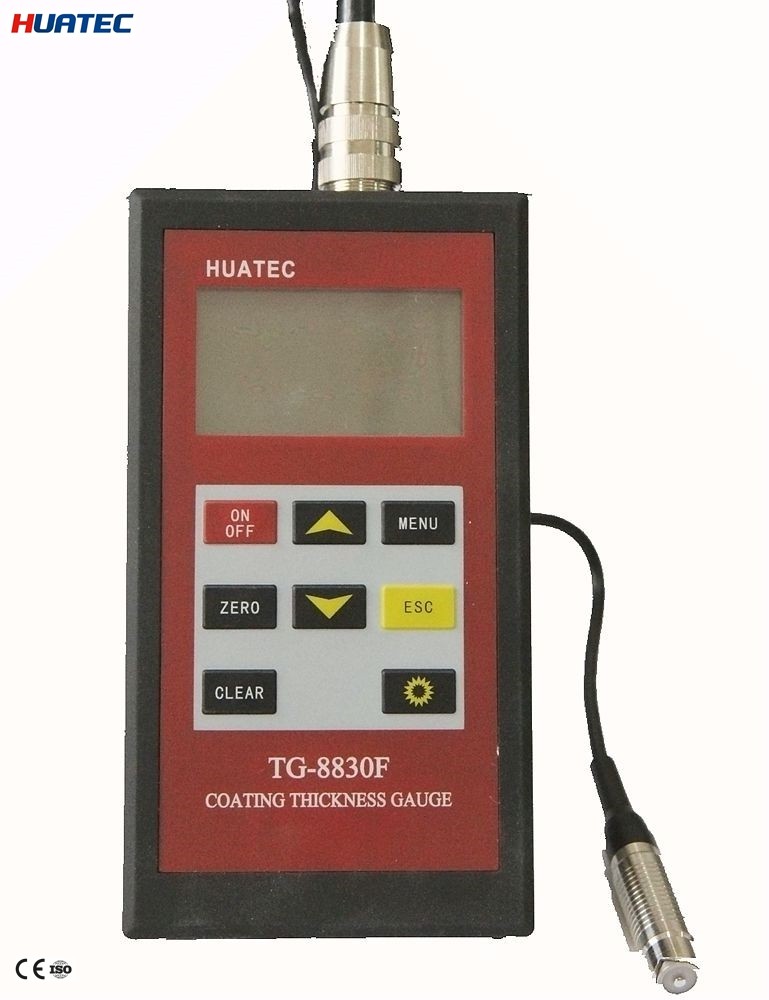

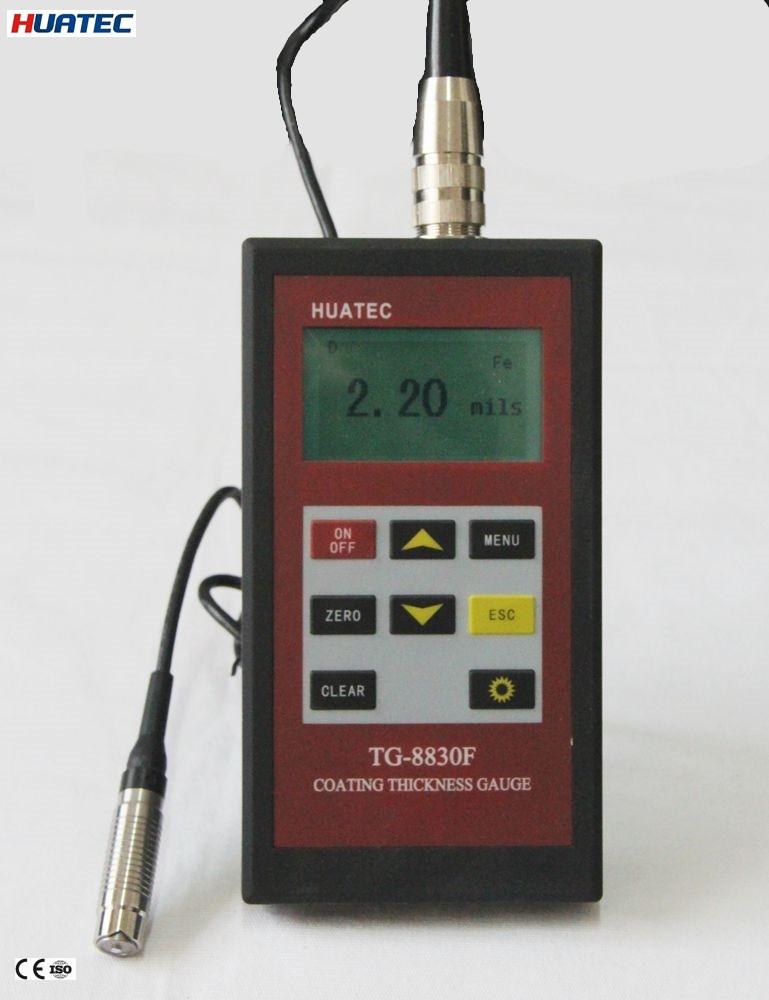

HIgh Resolution Coating Thickness Gauge TG8830F Auto Paint Thickness Gauge



TG8830F portable coating thickness gauge is using the magnetism measuring thickness method .

It can measure the thickness of the magnetism metal substrate (such as steel, iron, alloy and rigid magnetism steel and etc), non-magnetism cover layer (such as aluminum, chrome, copper, enamel, rubber, oil paint and etc) .

This instrument has small error of measure, excellent performance and good stability, easy operation and other characteristics, is a necessary measure instrument to control and guarantee the product quality, can be widely applied to manufacturing, metal processing industry, chemical industry, merchandise test fields.


Features

  • Precise measurements (2%+1)/(1%+1)
  • Quick measuring response and rapid measuring speed
  • Design of two independent parts , better applicability, stable measurement results
  • Strong data processing and analysis :5 types of Statistic value and histogram

 Technical Specification

Measuring range

F1:0~1250μm,

Measuring accuracy

1 point calibration : ±(2%+1)2 point calibration : ±(1%+1)

Calibration

1 point calibration /2 point calibration /basic calibration

Display resolution

0.1um (0~99.9um) / 1um (Over 100um)

Weight

250g(including battery package )

Operation environment

Temperature: 0℃~50℃ humidity: 20%RH～90%RH

Operation mode

Direct testing mode and block statistics mode

Measuring mode

continuous/single

Shutdown mode

manual/automatic

Operation alarm

Ring music to alarm mistake

Signal Dealing

Threshold

Limits setting and automatically alarm measured values out of limit

Data analysis

Analyzing a batch of measuring values via histogram

Statistic function

Mean/ Standard deviation / Number of measurements/ Maximum/ Minimum

Data Merory

Thickness values

500 measuring data

Delete

Single doubtful data / All data of one group

Power supply

Battery

9V Nickel-hydride/ alkaline batteries

Power battery inspection

low voltage indication

Standard delivery

Main unit

1

Integrated probe (F1)

1

Calibration foil set

4

Calibration base set

1

9V alkaline battery

1

Instruction manual

1
