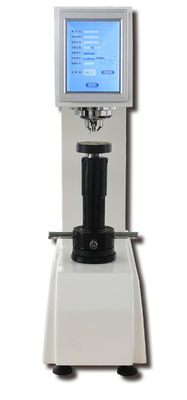

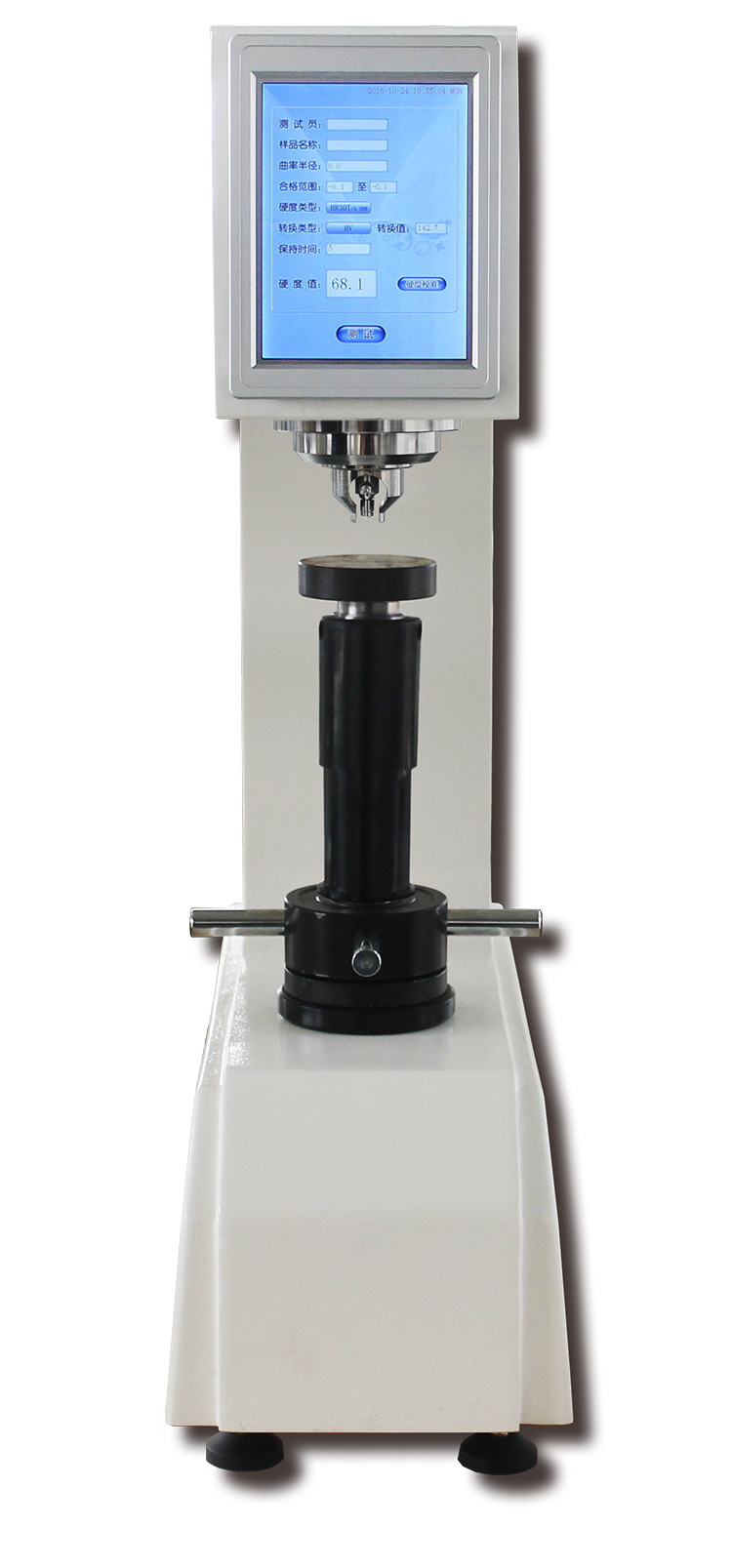

Touch Screen Rockwell Testing Rockwell And Superficial Rockwell Hardness Tester HR-150/45DX





Usage Range:

Surface hardness steel, material surface heat treatment and chemical processing, copper, aluminum, zinc, tin plate, chrome materials, bearing steel, cold hard castings, etc.





Main features:

  1. Adopting electronic and electric loading, high precision sensor, with unique closed loop control system
  2. Touch screen interface, easy to operate, directly select the hardness scale, the force value is automatically changed in the test parameters
  3. According to the standard hardness block, the three segments of each hardness scale are automatically corrected.
  4. The test force can be modified automatically by standard dynamometer.
  5. Apply the initial test force and the main test force automatically
  6. The data processing function is powerful, including: HR, HB, HV and other hardness type conversion, setting up the qualified range, automatic alarm for over-limit, and inputting the information such as tester, sample name, etc
  7. More samples and test information, the measurement data U disk saved in EXCEL format, easy to edit and process



Technical specification:

Model HR-150/45DX
Initial load of Rockwell 10kgf(98.07N)
Initial load of Superficial Rockwell 3.0kgf(29.4N)
Total load of Rockwell 60kgf(588N) 100kgf(980N) 150kgf(1471N)
Total load of Superficial Rockwell 15kgf(147.1N) 30kgf(249.2N) 45kgf(441.3N)
Rockwell scale HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK, HRL,HRM,HRR,HRP,HRS,HRV
Superficial Rockwell scale 15N,15T,15W,15X,15Y,30N,30T,30W,30X,30Y,45N,45T,45W,45X,45Y
Rockwell hardness testing range HRA:20-88,HRB:20-100 ,HRC:20-70 ,HRD:40-77 ,HRE:70-100 ,HRF:60-100 ,HRG:30-94,HRH:80-100,HRK:40-100,HRL:100-120 HRM:85-115, HRR:114-125
Superficial Rockwell hardness testing range

HR15N:70-94 HR30N:42-86 HR45N:20-77

HR15T:67-93 HR30T:29-82 HR45T:1-72
Dwell time 0-99s
Hardness resolution 0.1HR
Test force error

＜1.0%
Data output LCD display
Data storage The measured values are stored in the U disk in EXCEL format
Conversion scale Rockwell, Brinell, Vickers
Carried standard BSEN 6508, ISO 6508, ASTM E18, GB/T230
Max Height of Sample 200mm
Distance of Indenter to outer wall 200mm
Dimension 560×220×800mm
Weight 70kg
Power supply AC220+5%,50～60Hz

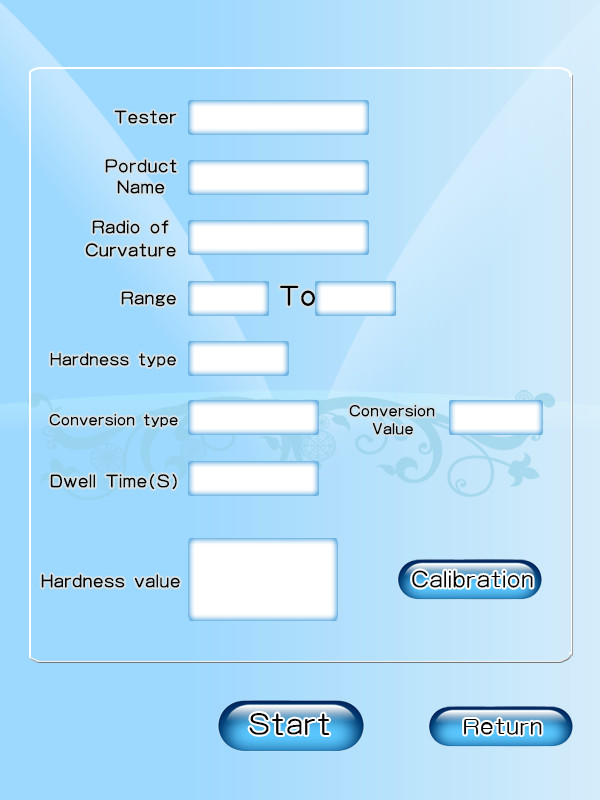

Operation Interface:

Touch Screen Rockwell Testing Superficial Hardness Tester 0

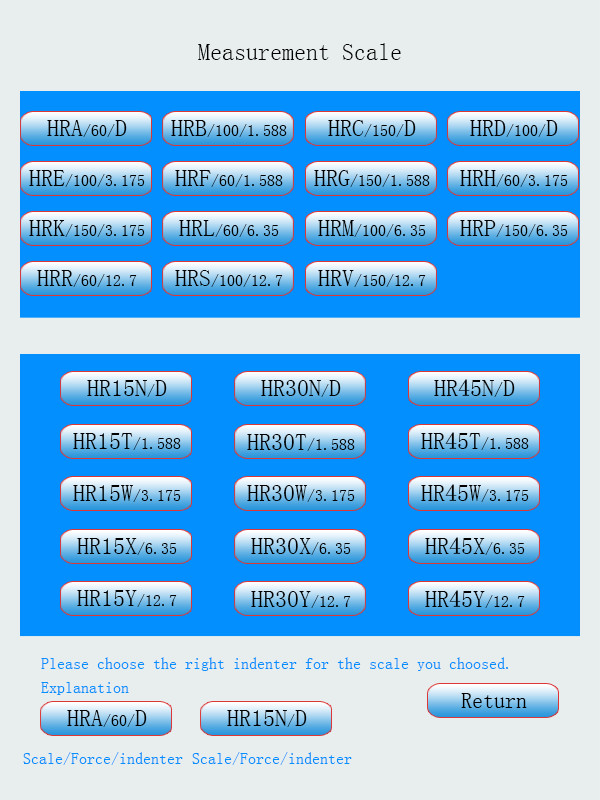

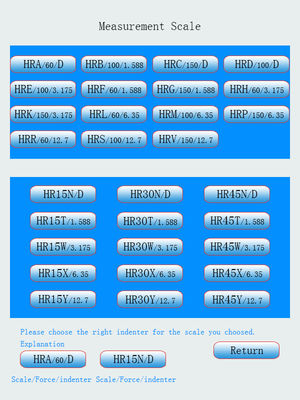

All Rockwell scales, 30 in total

Touch Screen Rockwell Testing Superficial Hardness Tester 1

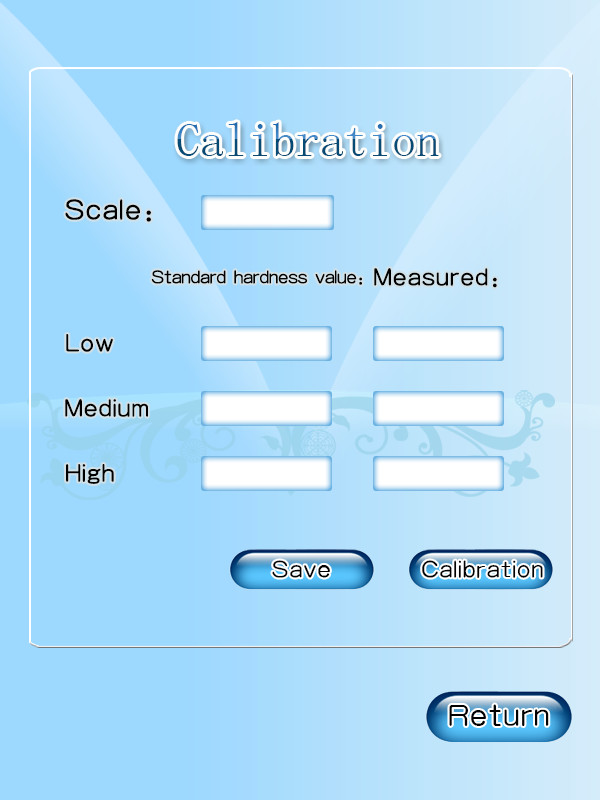

Automatic correction of high, medium and low hardness numbers

Touch Screen Rockwell Testing Superficial Hardness Tester 2

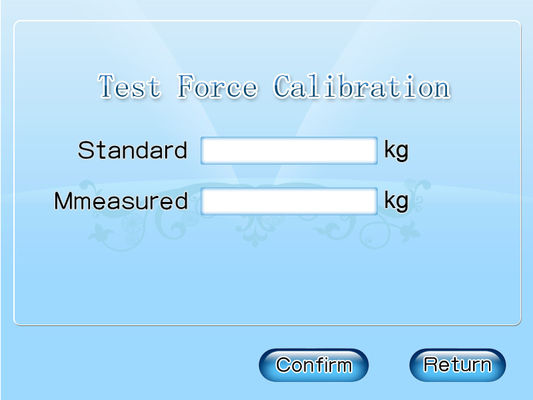

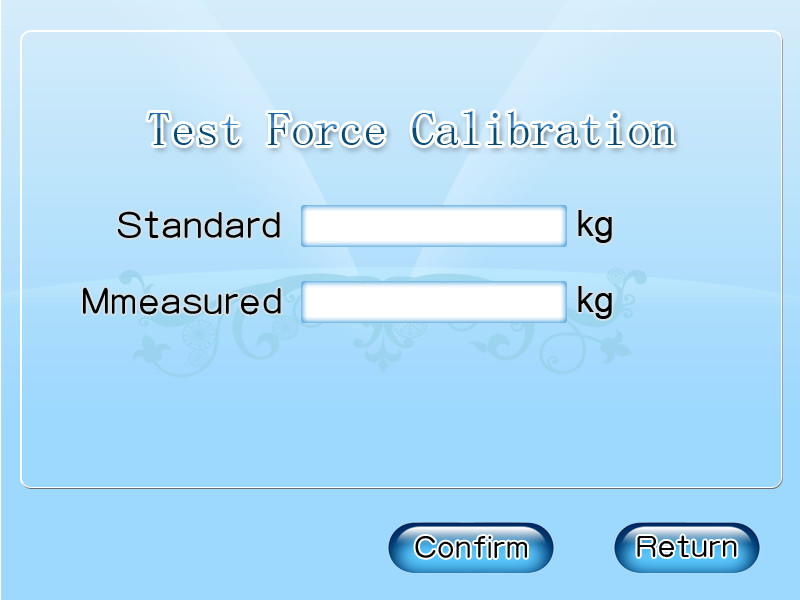

Automatic correction of load

Touch Screen Rockwell Testing Superficial Hardness Tester 3





Standard accessories:

Item Quantity Item Quantity
Rockwell diamond indenter 1 φ1.5875mm ball indenter 1
Test block(HRC high low,HRB,HR15N,HR30N,HR30T) Total 6 Large, medium, V-type testing table Each 1
Fuse 2A 2 Adjusting screw 4
U disk, touch pen Each 1 Dust bag 1
Power cable 1 Manual 1
Certificate, warranty 1
