Easy To Operate 300KV 22Ah X - Ray Pipeline Crawlers Radiography Pipeline Inspection X Ray Weld Testing

مكان المنشأ بكين
اسم العلامة التجارية HUATEC
إصدار الشهادات ISO, CE, GOST
رقم الموديل اتش اكس بي سي-100ا
الحد الأدنى لكمية قطعة واحدة
تفاصيل التغليف حزمة التصدير القياسية
وقت التسليم 1-4 أيام
شروط الدفع بـ (ت) ، (باي بال) ، (ويسترن يونيون)
القدرة على العرض 500 قطعة في الشهر

اتصل بي للحصول على عينات مجانية وكوبونات

واتس اب:0086 18588475571

(وي تشات): 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.

x
تفاصيل المنتج
الناتج كيلوفولت 300 كيلو فولت الحد الأقصى للتيار الخارجي 3mA
الطاقة الخارجة 1.5 كيلو واط قطر دائرة الانبوب Φ800—Φ1500 مم
إبراز

x-ray crawler,pipeline crawler

,

pipeline crawler

اترك رسالة
منتوج وصف

Easy To Operate 300KV 22Ah X - Ray Pipeline Crawlers Radiography Pipeline Inspection X Ray Weld Testing

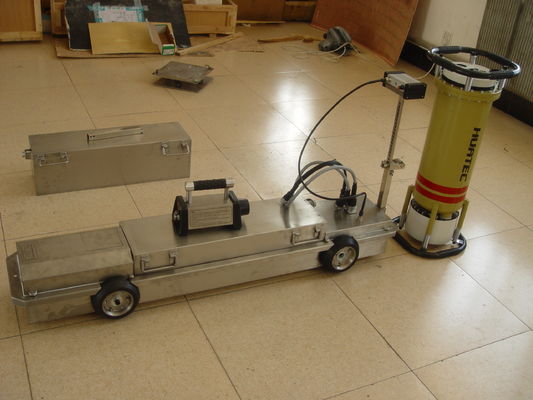

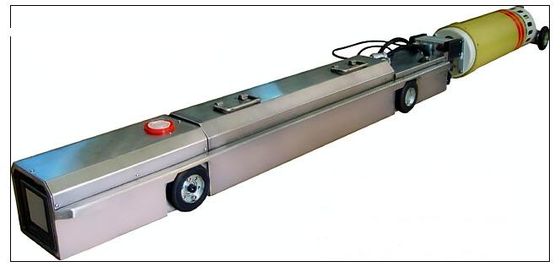

The X-ray pipeline crawlers include the special part that can detect the welding line of long pipeline. The X-ray pipeline crawlers have the advantages of high radiographic quality, high imaging sensitivity, low failure rate and high work efficiency. The X-ray pipeline crawlers have differential driving and vibration absorbers. The chassis of the X-ray pipeline crawlers can be moved in the pipeline steadily without off center running and overturning. The X-ray pipeline crawlers can be moved in the pipeline with great efficiency because it is controlled by PLC with protecting it from blocking and under voltage. The X-ray pipeline crawler is easy to be separated into several parts and then to be put together, so it is easy to carry. You can change the exposure parameter and make the X-ray pipeline crawler move, stop and have an exposure with the exterior controlling source. The X-ray pipeline crawlers are easy to operate.



Specification of X Ray Pipeline Crawler

          Model



Specification

HXPC-100A

HXPC-100B

HXPC-100C

Pipe diameter detecting range OD

Φ800—Φ1500mm

Φ500—Φ1000mm

Φ273—Φ700mm

Total weight

       140KG

     125KG

     100KG

Crawler length

       2200mm

2000mm

2000mm

Creeping speed

15M/min

15M/min

15M/min

Creeping distance

2KM

2KM

2KM

Locating error

±5mm

±5mm

±5mm

Max.output voltage

300Kv

250Kv

200Kv

Max.outout current

3mA

3mA

3mA

Climbing ability

40°

40°

25°

Radiation angle

360°*35°

360°*35°

360°*35°

Output power

1.5KW

1.25KW

1KW

Batteryenergy

22Ah/120V

17Ah/120V

12Ah/120V

Motor power

300W

300W

200W

Exposure time

1s~1h continues adjustable

1s~1hcontinues adjustable

1s~1hcontinues adjustable

Exposure voltage

5 selection

5 selection

5 selection

Operation temperature

-30°~ 70°

-30°~ 70°

-30°~ 70°



The crawler include below parts as standard accessories:

 Main vehicle

Lead acid pile: 110V(22Ah)

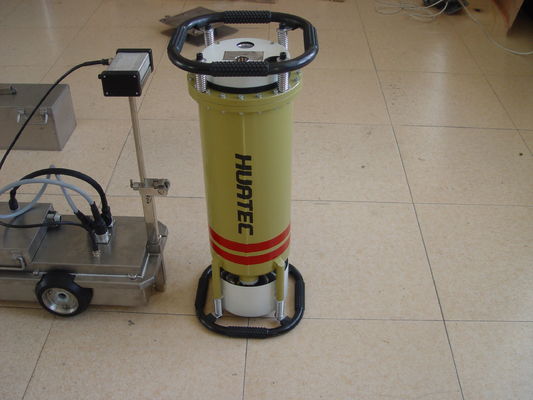

X-ray machine: 250KV/5mA

Remote controller (Electro magnetic induction type, no source)
